Share Tea

2016 | San Jose, CA Tenant improvement on an existing 856 S.F. space at the Westfield Valley Fair in San Jose, CA. Improvements included a the removal of the existing storefront glazing system; non-bearing walls; ceiling system; wall finishes and plumbing fixtures. New storefront glazing system; non-bearing walls; equipment; plumbing fixtures and the install of new tenant sign. Programs used: AutoCAD; SketchUp; V-Ray; Photoshop

3D RENDERED MODEL
Programs used: SketchUp; V-Ray; Photoshop

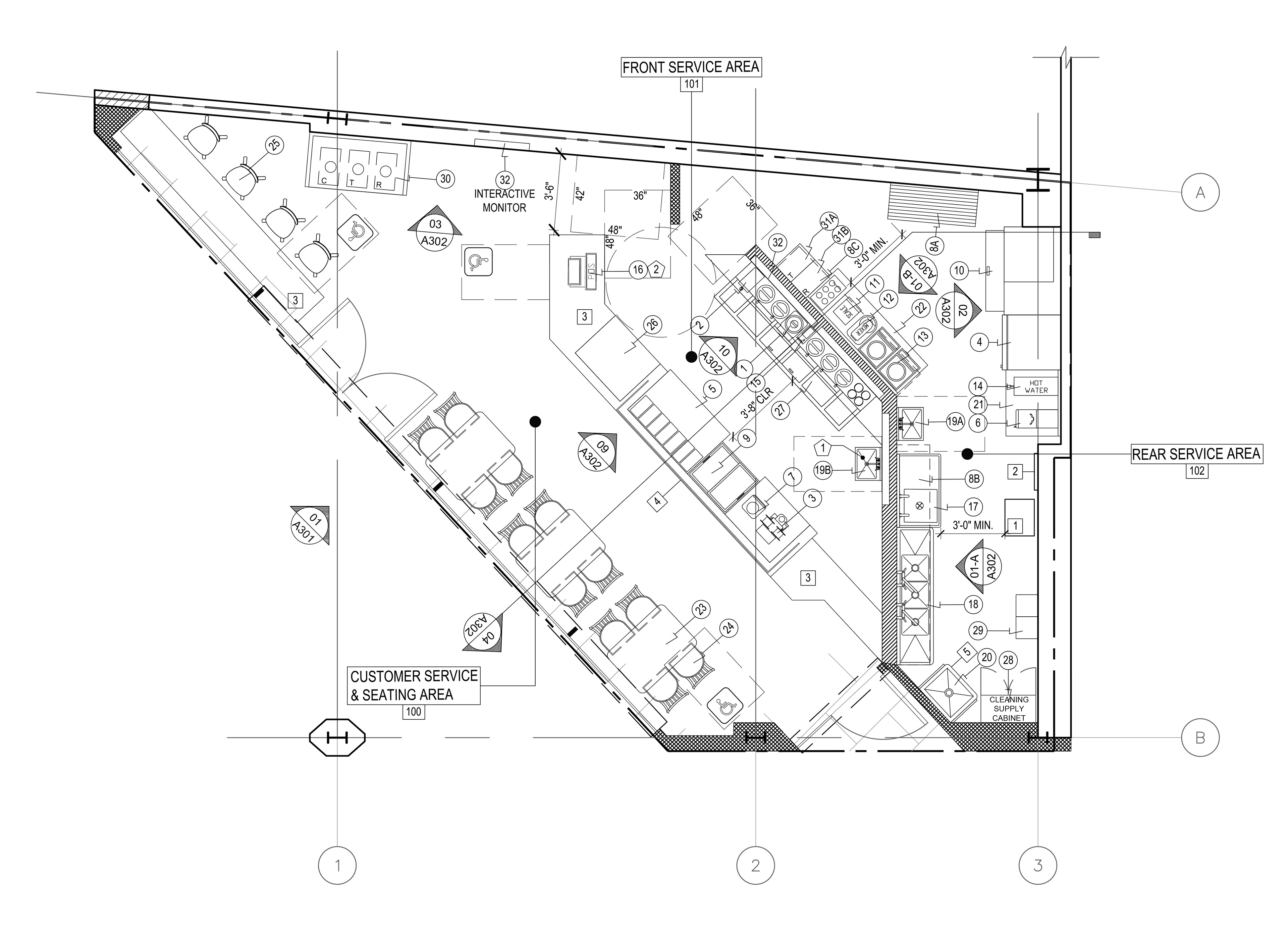

FIXTURE PLAN
Program used: AutoCAD

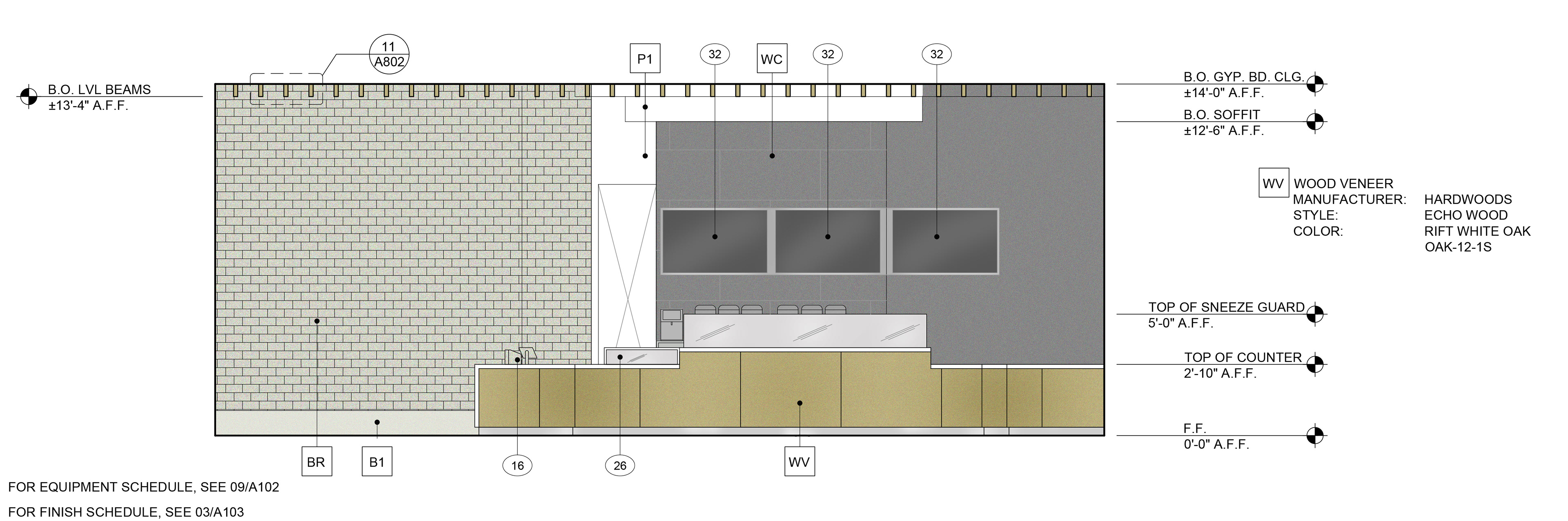

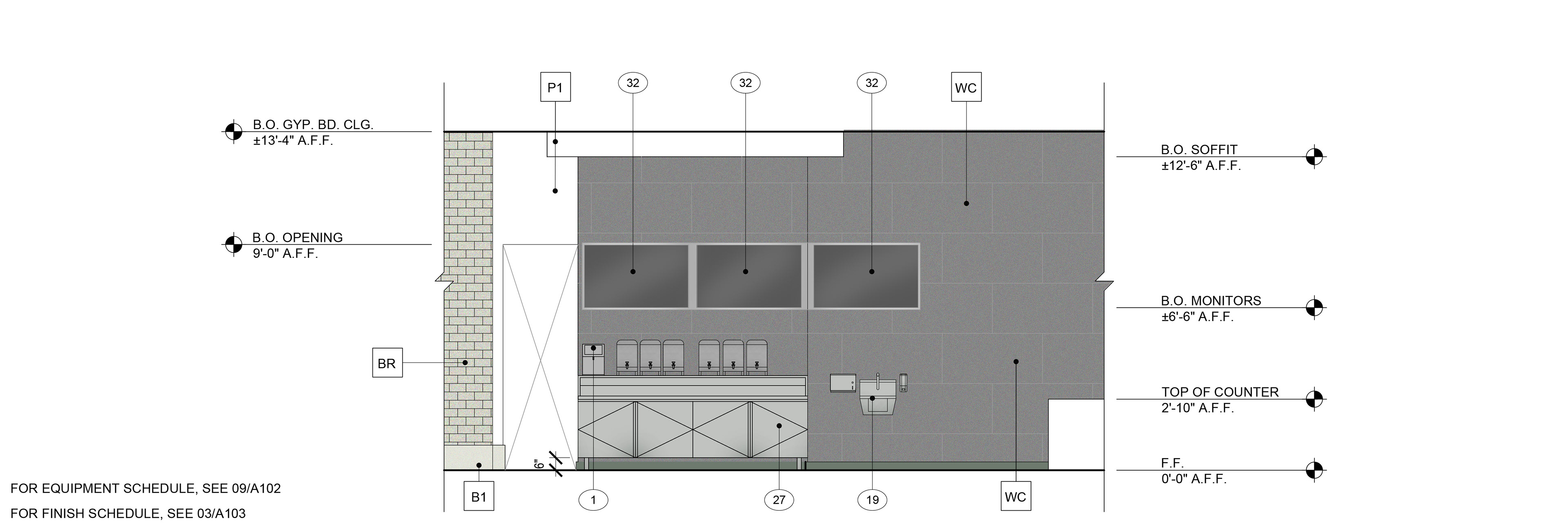

RENDERED CUSTOMER SERVICE AREA ELEVATION
Programs used: AutoCAD; Photoshop

RENDERED FRONT SERVICE AREA ELEVATION
Programs used: AutoCAD; Photoshop

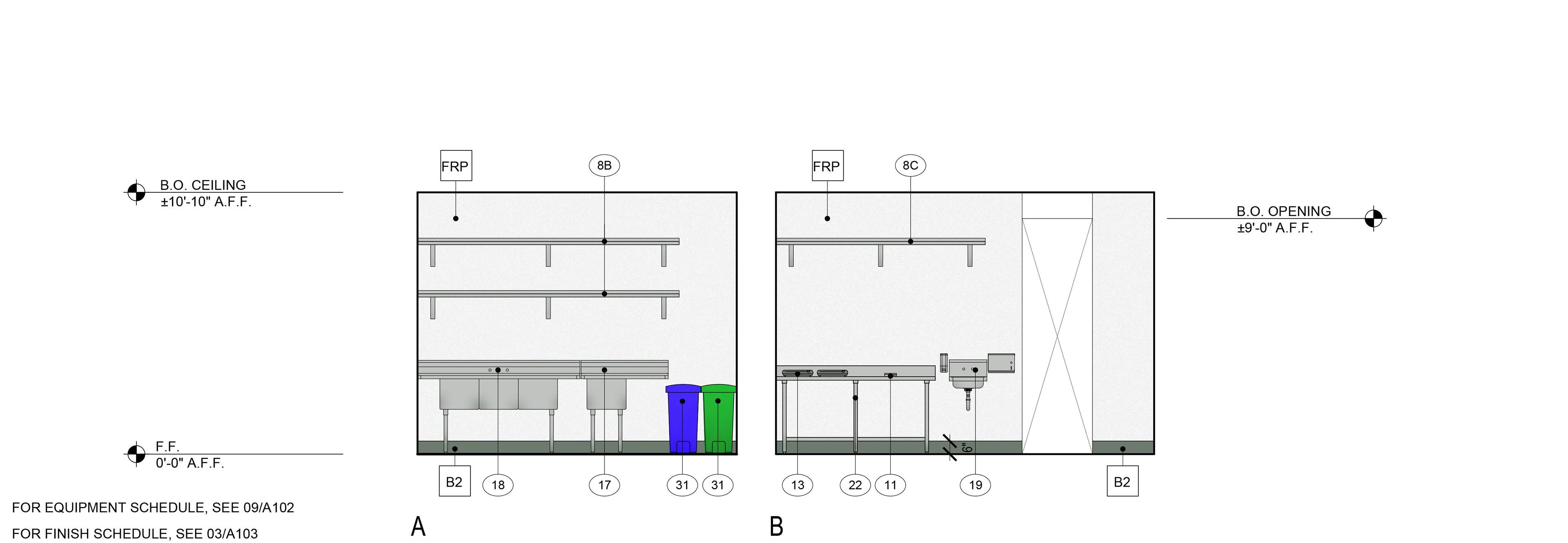

RENDERED REAR SERVICE ELEVATION
Programs used: AutoCAD; Photoshop

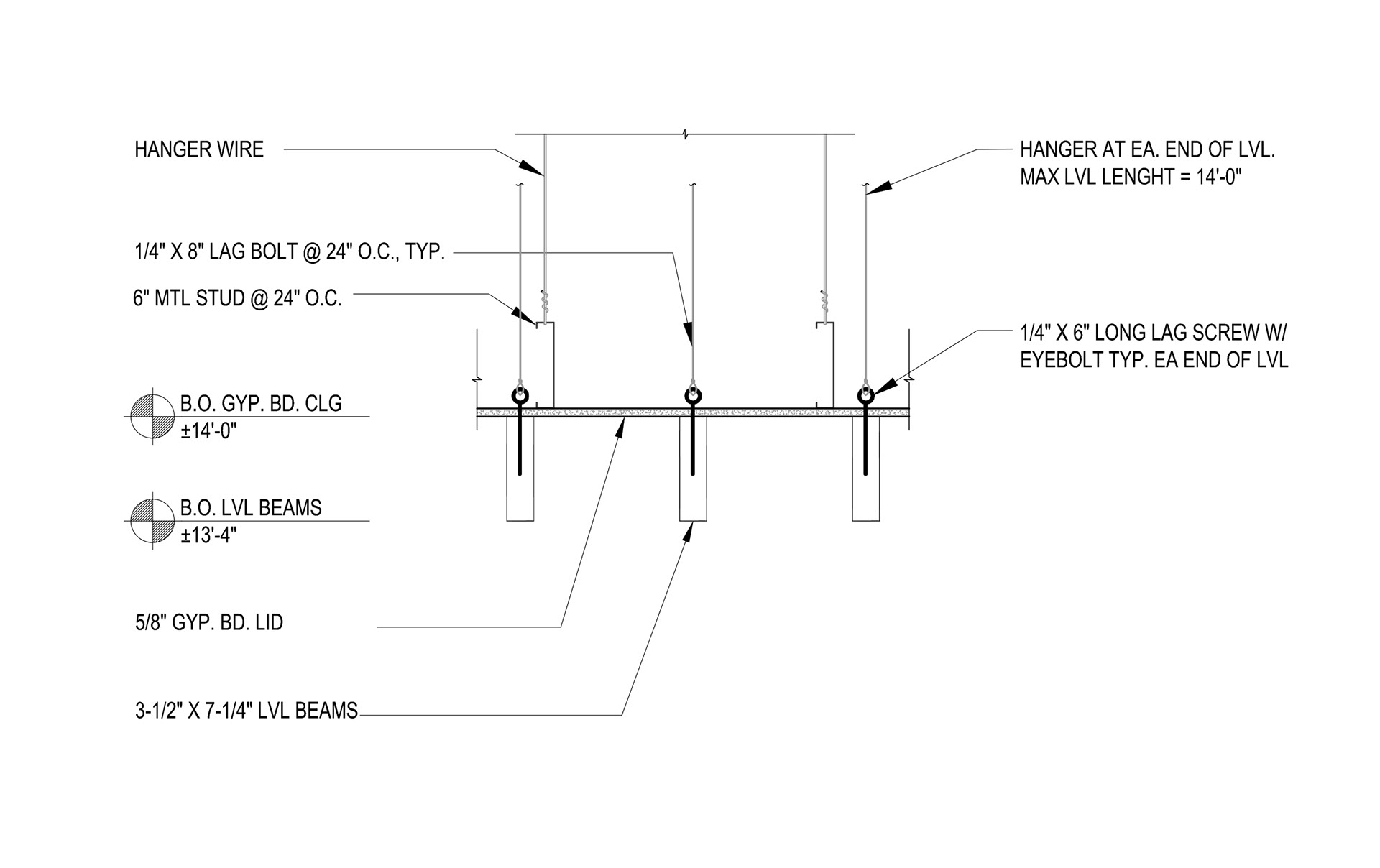

LVL Beam Detail
LVL Beam Detail

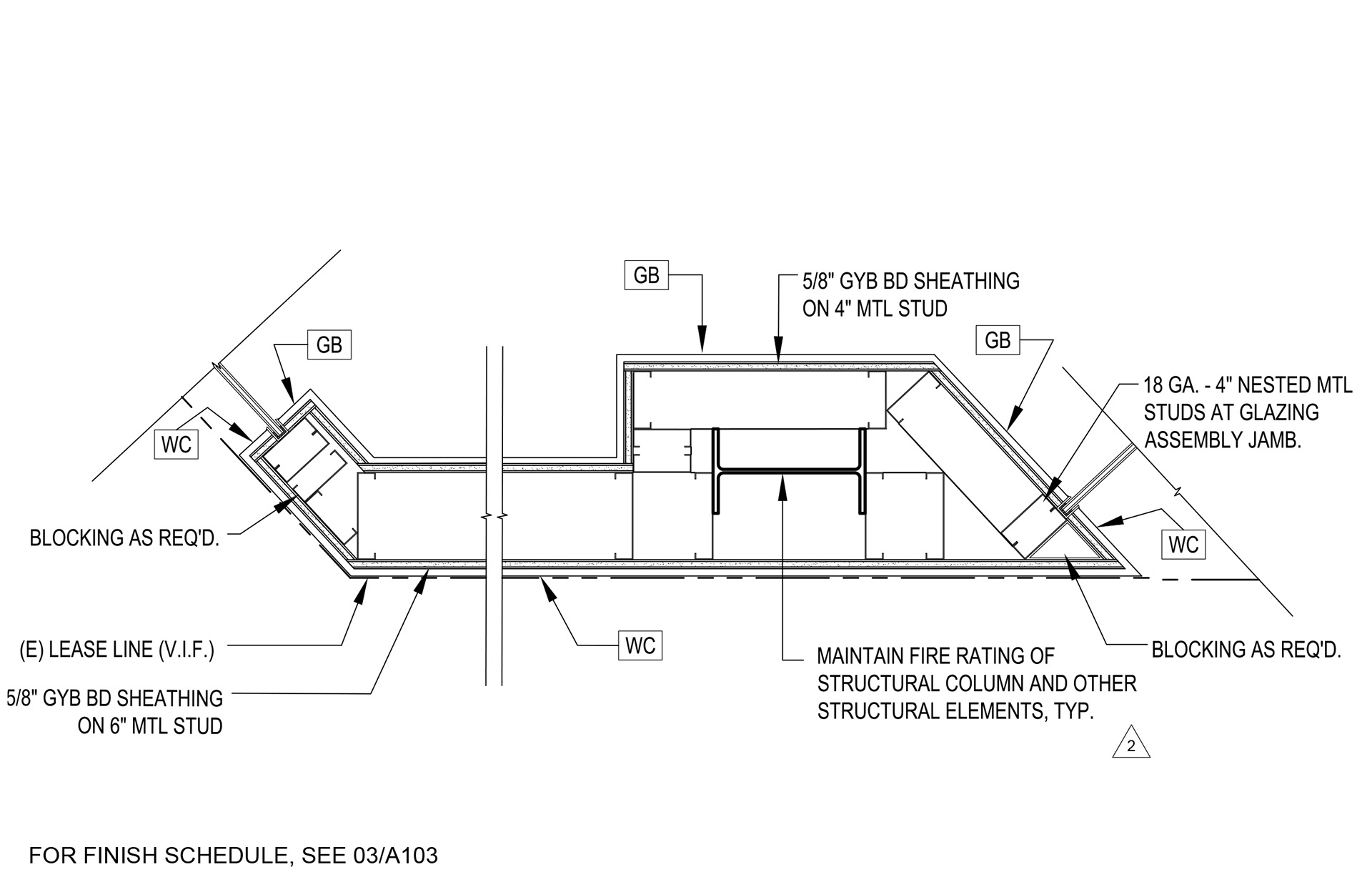

Enlarged Wall Detail @ Neutral Pier
Enlarged Wall Detail @ Neutral Pier

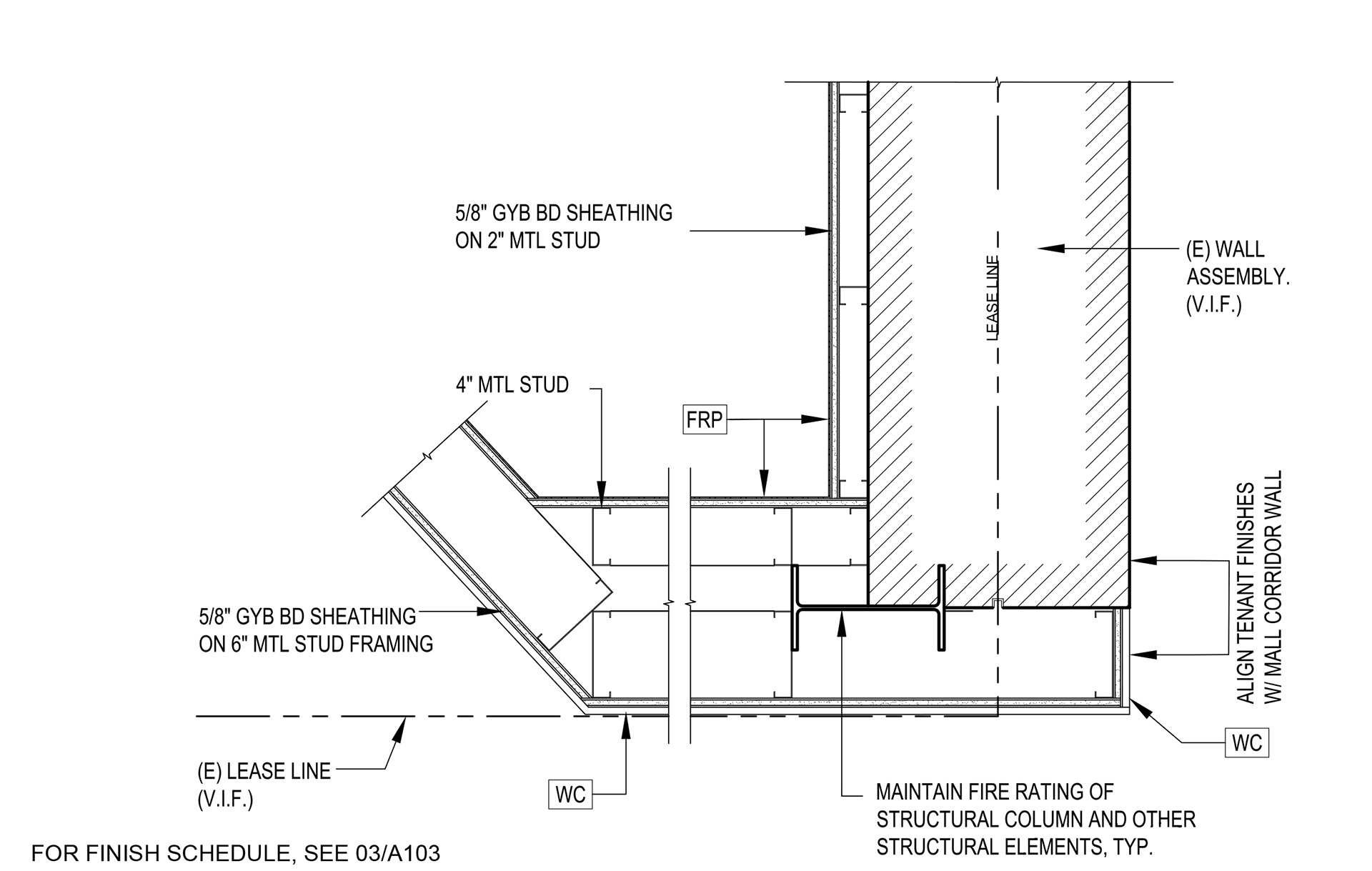

Enlarged Wall Detail
Enlarged Wall Detail

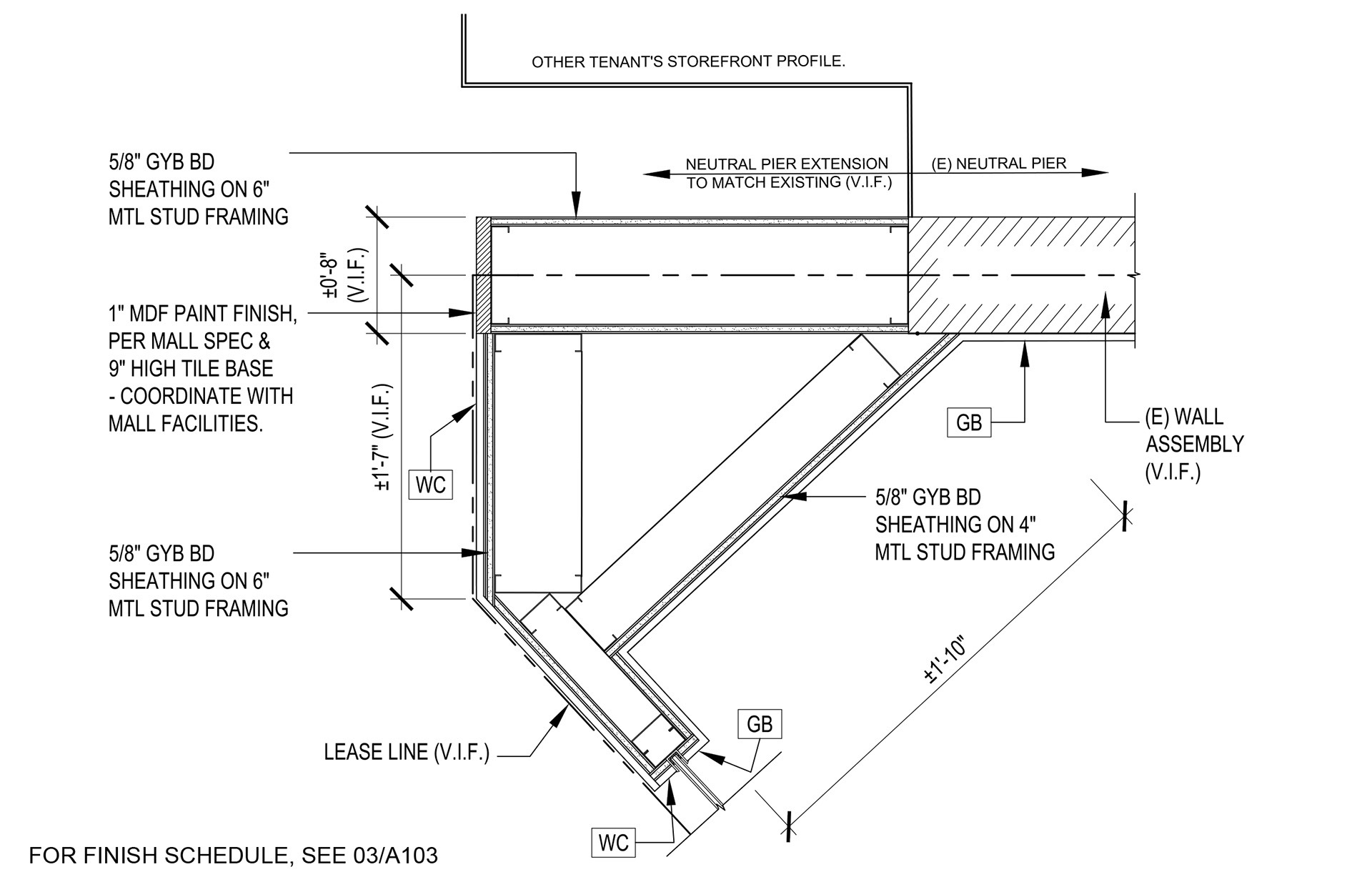

Enlarged Wall Detail
Enlarged Wall Detail

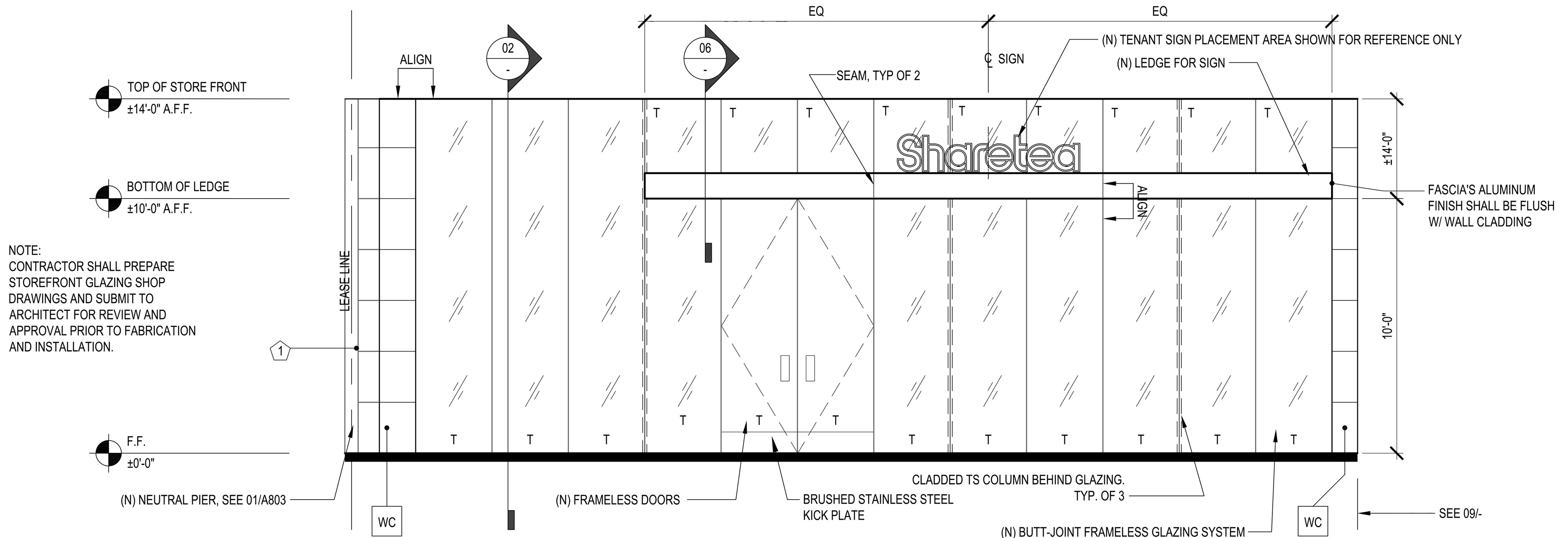

STORE FRONT ELEVATION
Programs used: AutoCAD

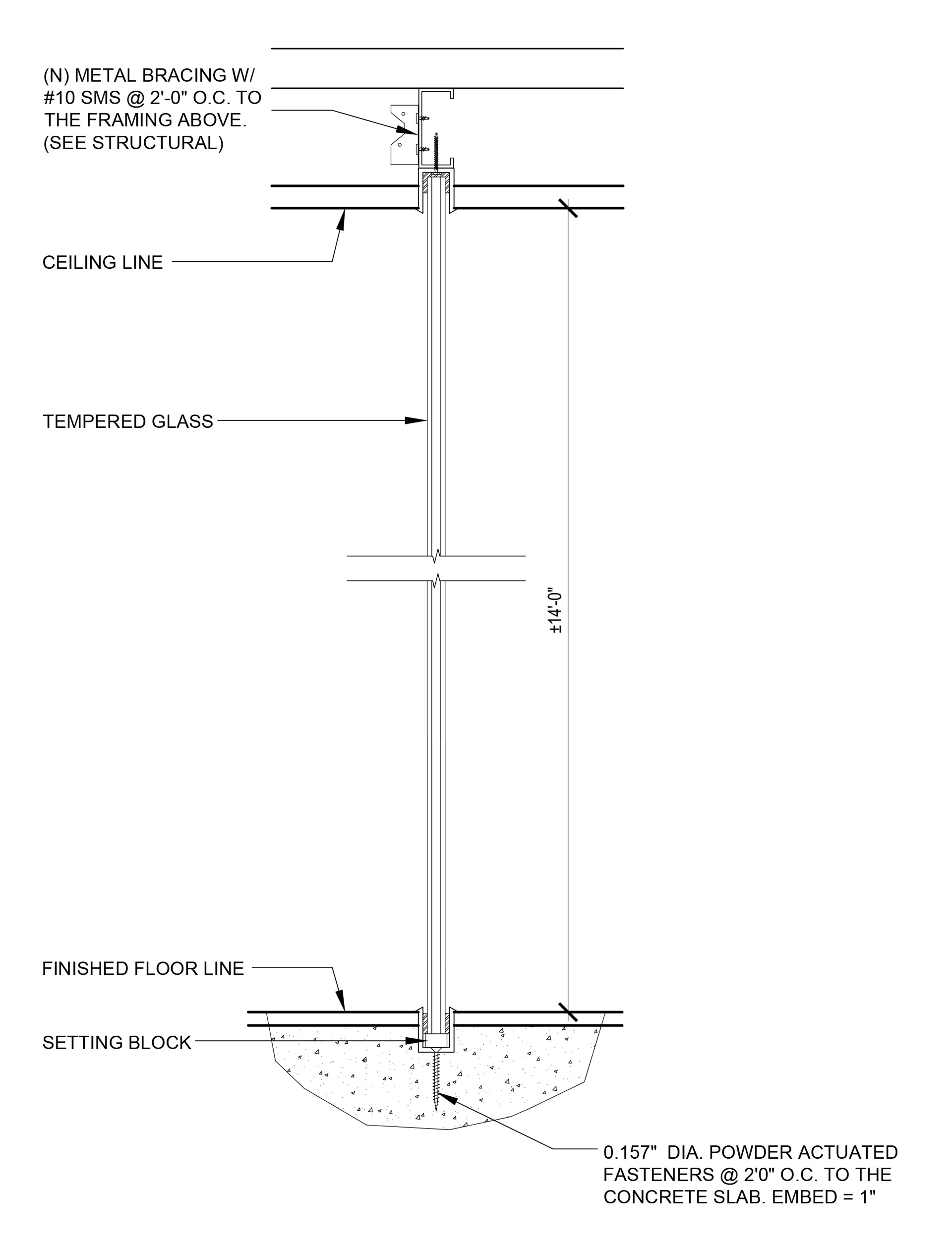

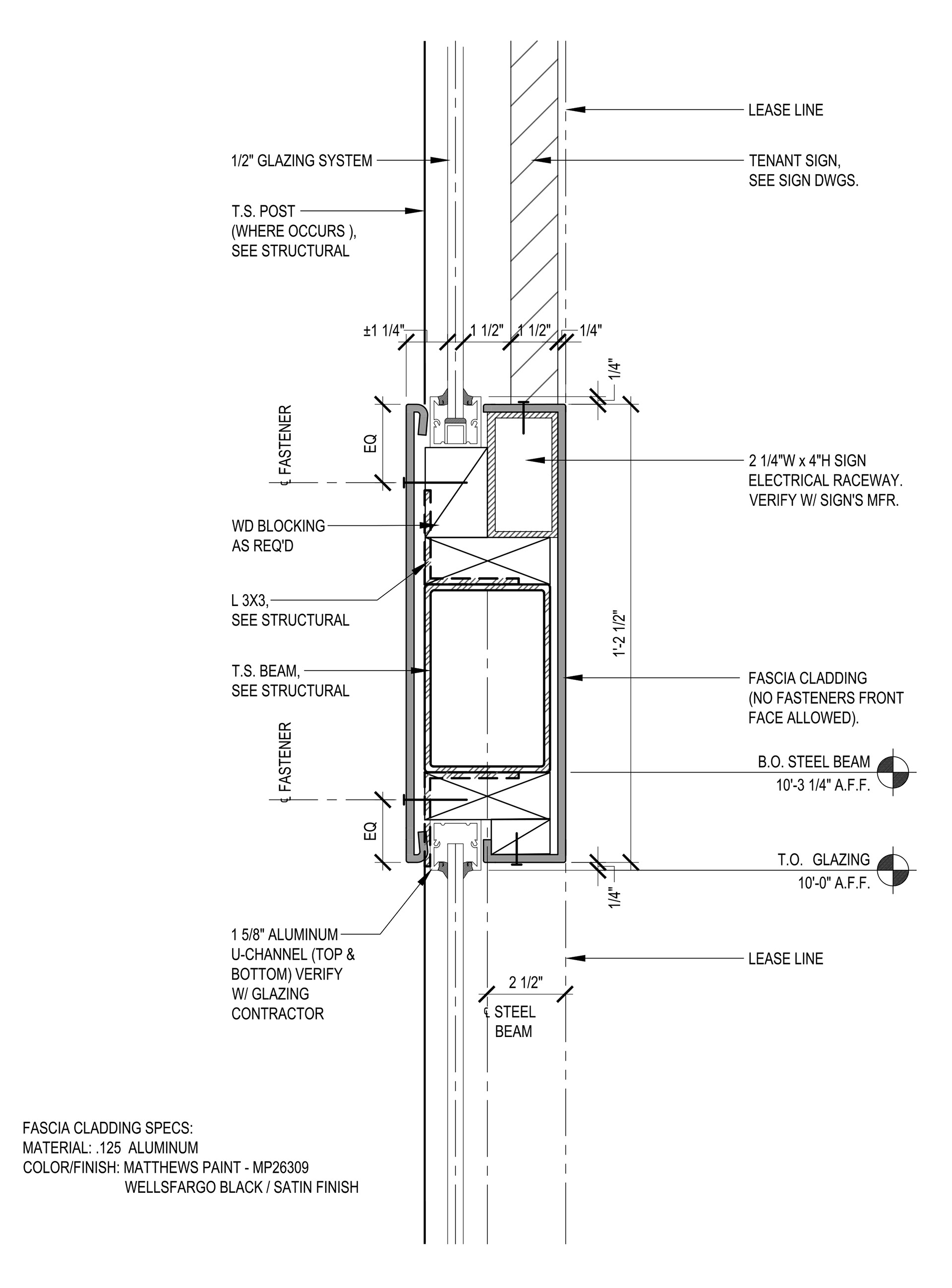

Glazing Section
Glazing Section

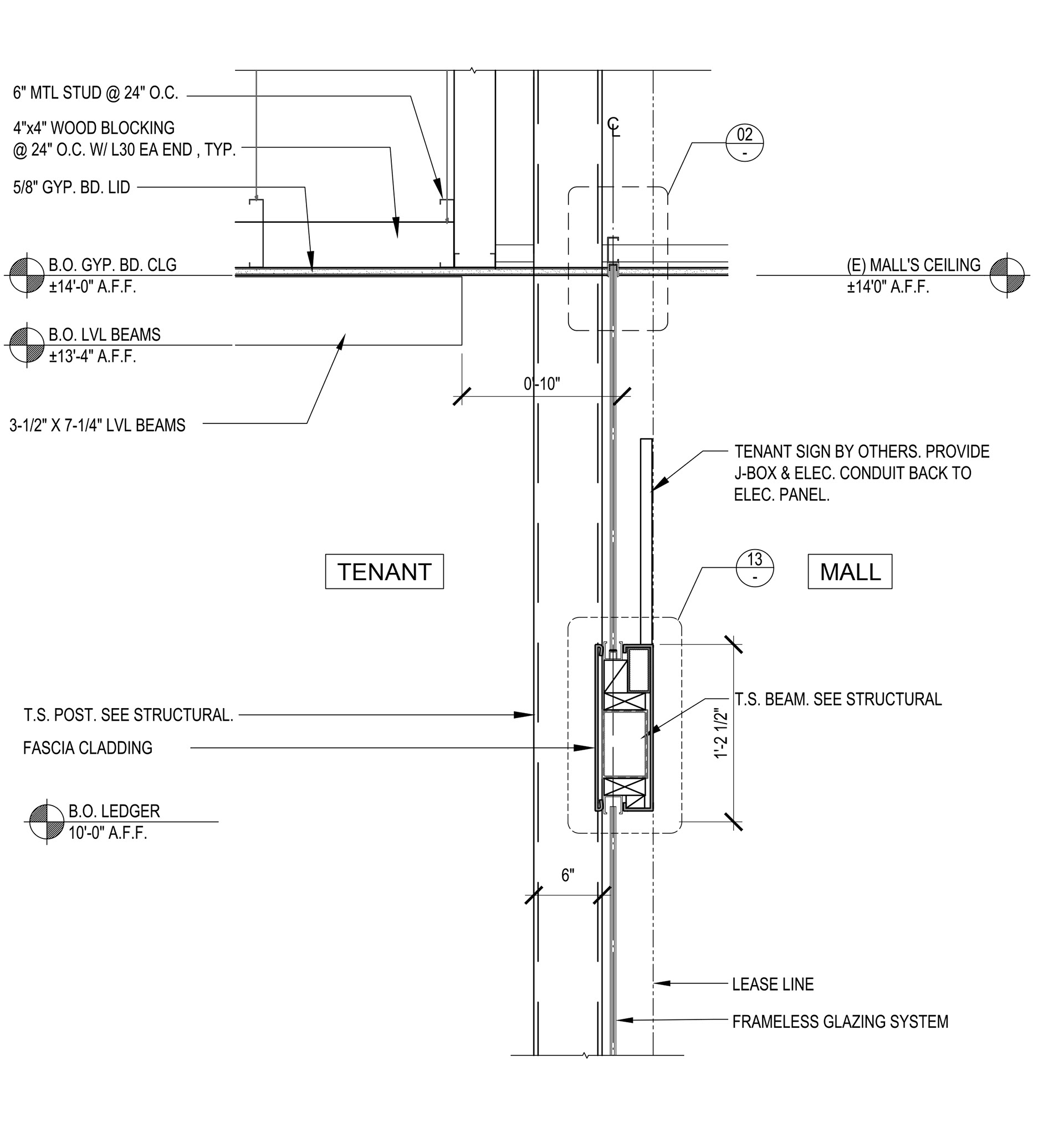

Ledger Detail
Ledger Detail
Enlarged Ledger Detail
Enlarged Ledger Detail
